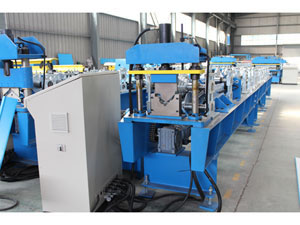

Gutter Roll Forming Machine
Description
Gutter roll forming machine is used to produce sheet metal by continuous cold rolling. The sheet metal can be applied as sink in steel framed buildings. It is a new efficient equipment to manufacture steel retaining plate. Coiling metal plate can be used as its raw material. Through uncoiling raw material, forming the sheet metal by continuous roll-cold bending, and automatic cutting automatically, finally gutter roll forming machines produce steel tile. Because of its better compressive capability and bending strength, profiling steel tile is used as popular modern building material. As a professional roll forming machine manufacturer, we produce gutter roll forming machines with different specifications. So the profiling steel tile’s shape, size and color can be customized according to customer’s requirements.
Strengths
1.Gutter roll forming machine adopts guiding roller as inner supporting structure.
2. Its transmission mode is double-chain transmission.
3. It is driven by electric motor.
4. It can work continuously and automatically by using PLC and variable-frequency regulating speed technology.
5. A complete set of gutter roll forming machines shares one machine base.
6. It is low energy consuming but high-efficiency.
7. This gutter roll forming machine is rationally designed and makes low noise when functioning.
Payment and Delivery Terms
Our company accepts 30% deposit by T/T and the 70% balance paid before loading. We make sure delivery in 60days after receiving 30% advance payment.
Parts of the Gutter Roll Forming Machine
| No. | Name | Quantity | Remarks | |
| 1 | Uncoiling Machine | 1set | Up to Customer | |
| 2 | Main Machine | Front-cutting Device | 1set | Up to Customer |
| Feeding Device | 1set | |||
| Machine Base | 1set | |||
| Punching Device | 1set | According to Profiles | ||
| Roll forming System | 2sets or above | |||
| Back-Cutting Device | 1set | Including Two Sets of Cutting Knives | ||
| Hydraulic System | 1set | |||
| 3 | Electric Control System | 1set | ||
| 4 | Supporter/Automatic Stacker | 1set | Up to Customer | |
Main Technical Parameters of Gutter Roll Forming Machine
| NO. | Item | Para | Remark |
| 1 | Material Thickness (mm) | 0.4 to 1.2 | Color Steel Sheet/Galvanized Steel |
| Material Yield Strength (Mpa) | 230 to 300MPA | Color Steel Sheet/Galvanized Steel | |
| Material Width (mm) | ≤1250 | According to Customer’s Raw Material | |
| Capacity of Uncoiling Machine | 5T/8T/10T | According to Customer’s Require | |
| Material of Roller | Hard Chrome Plate | ||
| 2 | Forming Speed (m/min) | 20 | Not Including Cutting Time |
| 3 | Roller Inner Supporting Structure | Guiding Column | |
| 4 | Electric Control System | PLC | Brand: Mitsubishi or Siemens |
| 5 | Operation Desk | Touch Screen + Button |
Smartech Machinery is a professional roll forming machine manufacturer in China. Our company is devoted to design, development, manufacture and sale of various kinds of roll forming machines, such as cassette roll forming machine, cable tray roll forming machine, gutter roll forming machine. Smartech Machinery is not only well accepted in China’s building industry, it also has well received abroad in recent years, such as Europe, the Middle East, Southeast Asia and South Africa.
